Signal Booster For DJI Mavic Air Mini 2 Range Extender Amplification Antenna Amplifier 2.4GHz Air 2S 5.8GHz Compatible Accessories Kit
- Availability: In Stock
- Product Code: DJI-1295200
Compatible with DJI Mavic Air 2S

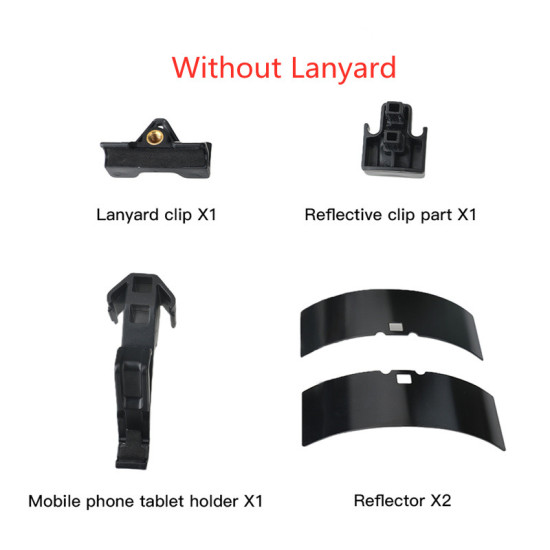

Version 1: without lanyard

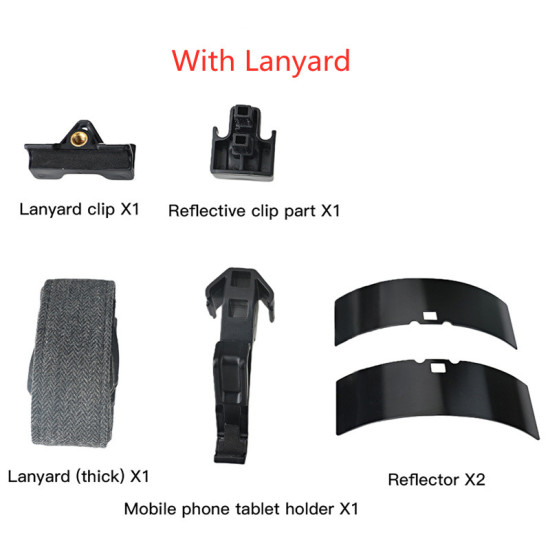

Version 2: with lanyard
Installation video:
http://cloud.video.taobao.com/play/u/951951557/p/2/e/6/t/1/281529268253.mp4

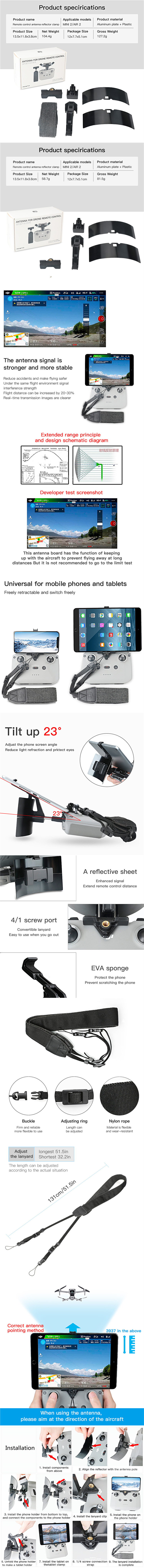

Specifications
Product name: Range extender for Remote control

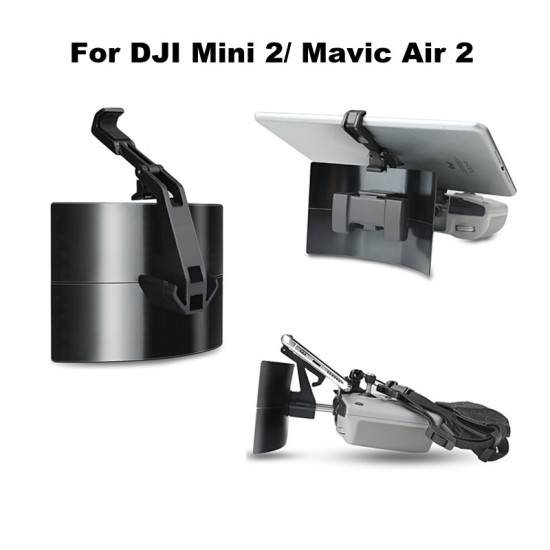

Applicable models: MINI 2/AIR 2
Product material: Aluminum plate + Plastic

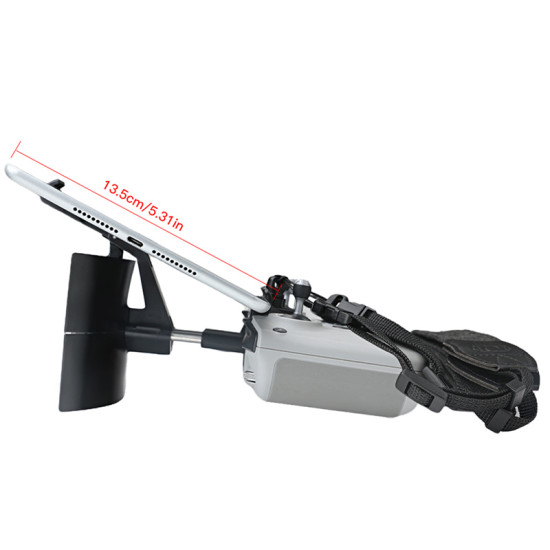

Product Size: 13.5x11.8x3.8cm
Net Weight: 104.4g (with lanyard), 58.7g( without lanyard)
Package Size: 12x7.7x5.1cm
Gross Weight: 127.2g (with lanyard), 81.5g( without lanyard)

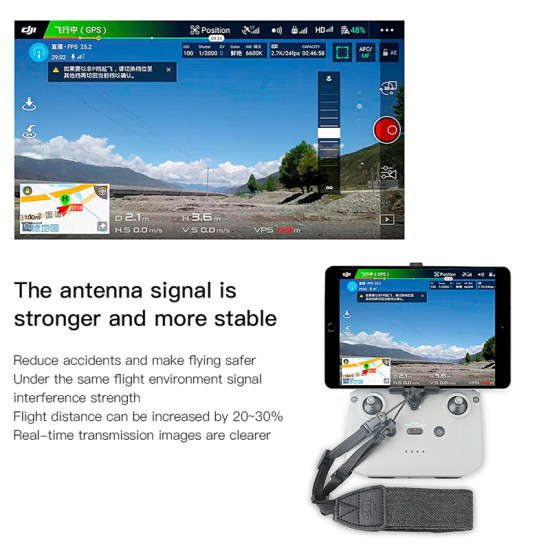

The antenna signal is stronger and more stable
Reduce accidents and make flying safer
Under the same flight environment signal interference strength, Flight distance can be increased by 20~ 30%
Real-time transmission images are clearer
Extended range principle and design schematic diagram
Developer test screenshot
This antenna board has the function of keeping up with the aircraft to prevent flying away at long distances
But it is not recommended to go to the limit test

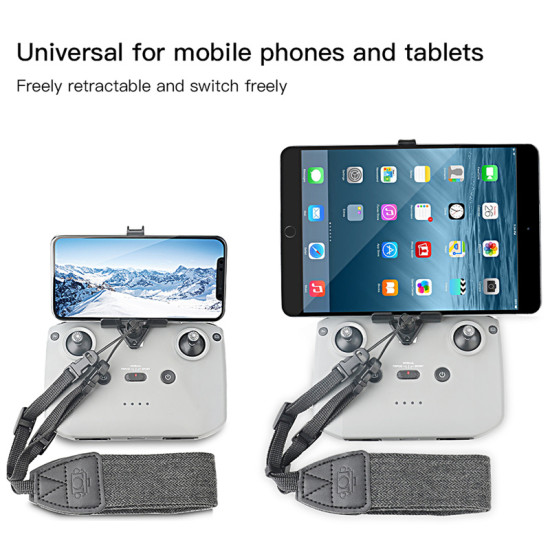

Universal for mobile phones and tablets
Freely retractable and switch freely

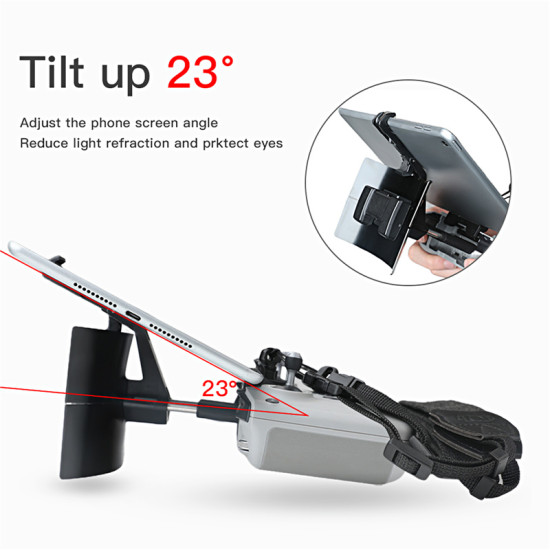

Tilt up 23°
Adjust the phone screen angle
Reduce light refraction and protect eyes

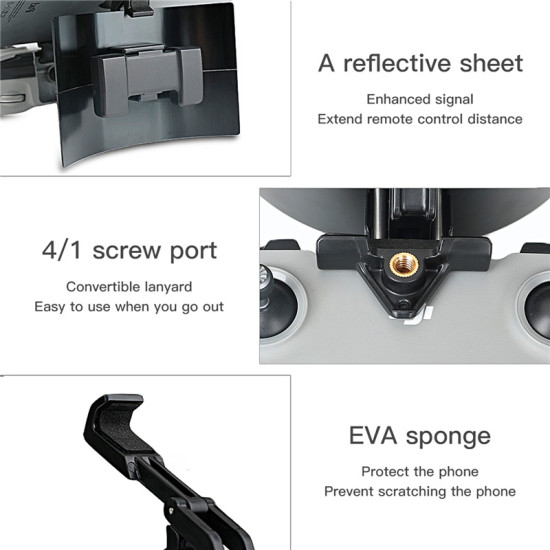

A reflective sheet Enhanced signal, Extend remote control distance
4/1 screw port, Convertible lanyard, Easy to use when you go out
EVA sponge, Protect the phone, Prevent scratching the phone
Buckle, Firm and reliable, more flexible to use
Adjusting ring, Length can be adjusted
Nylon rope, Material is flexible and wear-resistant
Adjust the lanyard
longest 51 .5in
Shortest 32.2in
The length can be adjusted according to the actual situation
Correct antenna pointing method
When using the antenna, please aim at the direction of the aircraft
Installation:
1. Install components from above
2. Align the reflector with the antenna pole
3. Install the phone holder from bottom to top, and connect the components to the phone holder
4. Install the lanyard clip
5. Install the phone on the phone holder
6. Unfold the phone holder to make a tablet holder
7. Install the tablet on the tablet clamp
8.1/4 screw connection strap
9. The lanyard installation is complete
