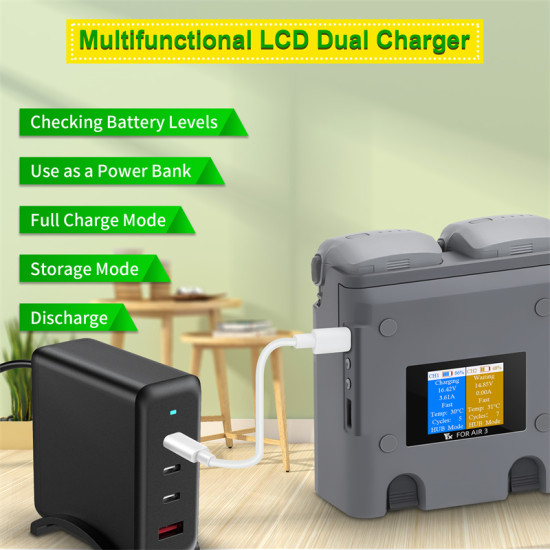

AIR 3 Multlfunctlonal LCD Dual Charger

Features：

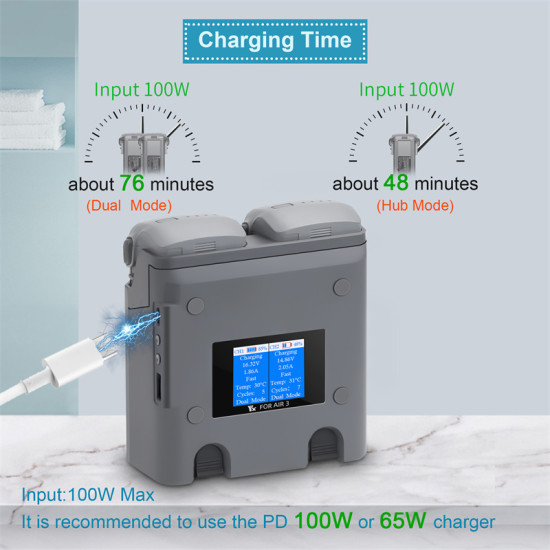

- Multlfunctlonal LCD Dual Charger,The charger can charge 2 batteries at the same time or one by one,Charging Time;

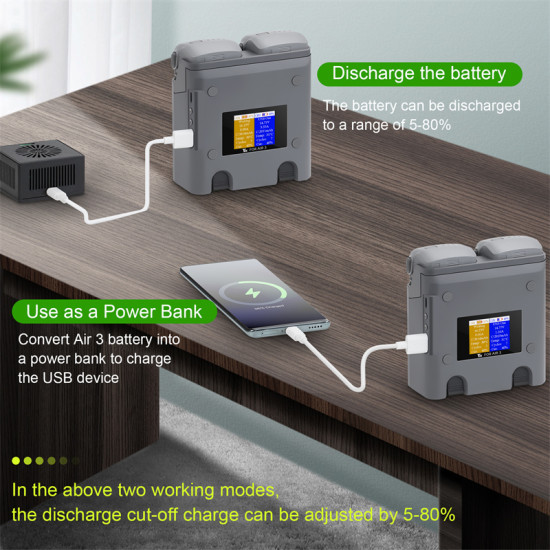

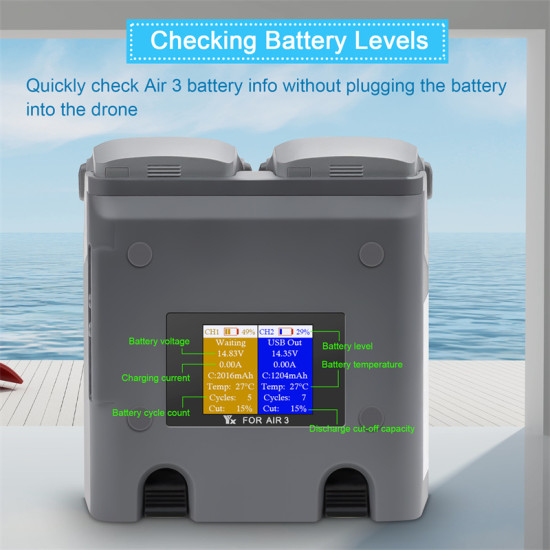

- Discharge the battery,Use as a Power Bank,Checking Battery Levels,(Dual Mode)about 76 minutes,(Hub Mode)about 48 minutes.

Specifications:

AIR 3 Multlfunctlonal LCD Dual Charger

Product parameters:

Input voltage: 5V/9V/12V/ 15V-3A; 20V/5A

Dc output :17.0V - 3.0A*2

Single output: 17.0V - 5.0A(max)

USB output: 5V/3A(max)

Charging ambient temperature: 0-40°C

Product size: 11.3*5.2*11.3 cm(charger)

5*6*3.5cm (Discharger)

Package size: 16.5*12.2*6cm

Net weight: 273G

Packing weight: 336G

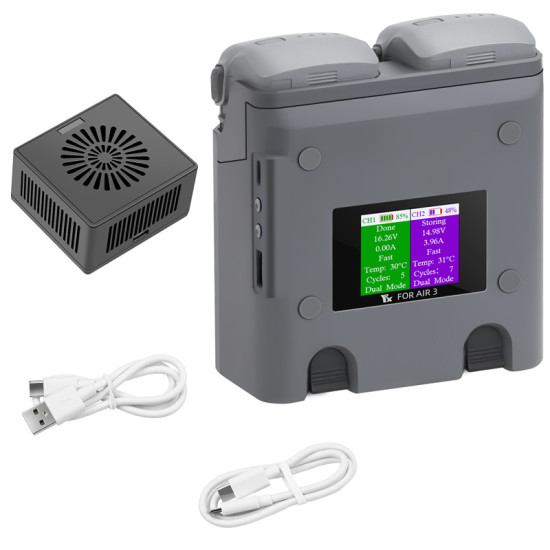

Packing list: 1 x Air 3 color screen dual charger, 1 x discharger, 1 x USB-A to USB-C charging cable, 1 x USB-C to USB-C charging cable

Charger function introduction:

The functions of the charger - full charge mode, storage charge mode, discharge mode, use the AIR3 battery as a charging bank and check the battery level

Charging introduction:

1, full charge mode: the battery is fully charged.

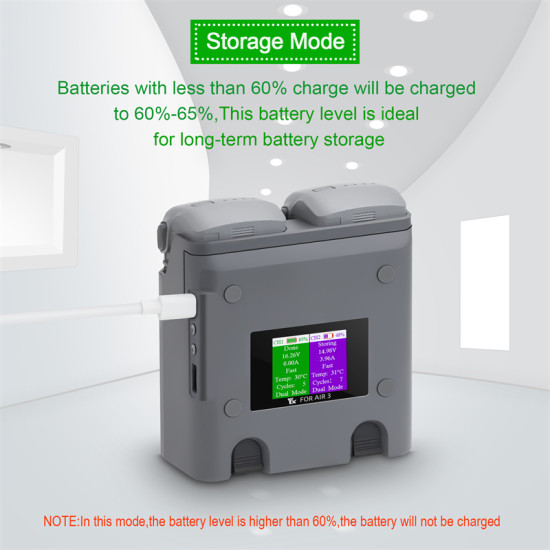

2, storage charging mode: the best long-term storage battery power is about 60%. This mode can charge the battery below 60% to 60%-65% and then automatically stop. (Only storage and charging of batteries with a capacity of less than 60% can be performed)

Long press "Key 2" for two seconds to switch two modes

Note: USB port only output function, can not charge other devices at the same time, such as remote control, mobile phone

Two charging modes - full charging mode and storage charging mode, input power ≥PD65W, long press "key 1" for two seconds to switch

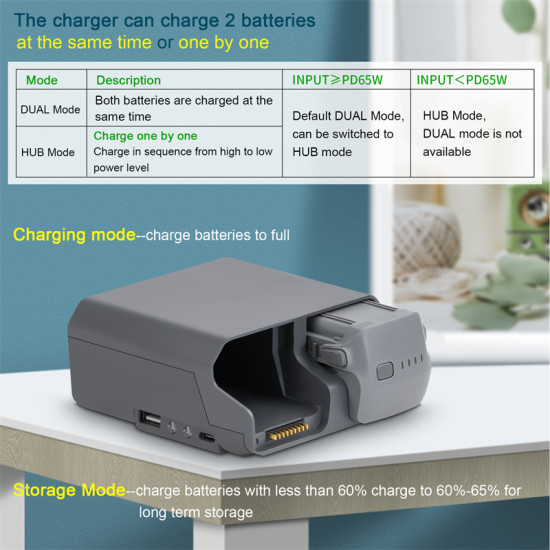

Mode Feature Input ≥PD65W Input < PD65W

Dual charging mode Two batteries charge at the same time The default dual charging mode can be switched to charging manager mode Charging manager mode.

Dual charging mode is unavailable

Charge manager mode to charge two batteries one by one, you can first charge the high battery, and then charge the low battery.
