Thrower For DJI Phantom 4 3 2 Light Weight Airdrop System Drone Air-Dropping Fishing Bait Wedding Ring Gift Deliver Accessory

Version 2: Phantom 2 Version
Version 3: Phantom 3 Version
Version 4: Phantom 4 Version

Phantom 4 Version
Specifications
Product name; New light thrower
Applicable models: PHANTOM 4A/ PHANTOM 4P

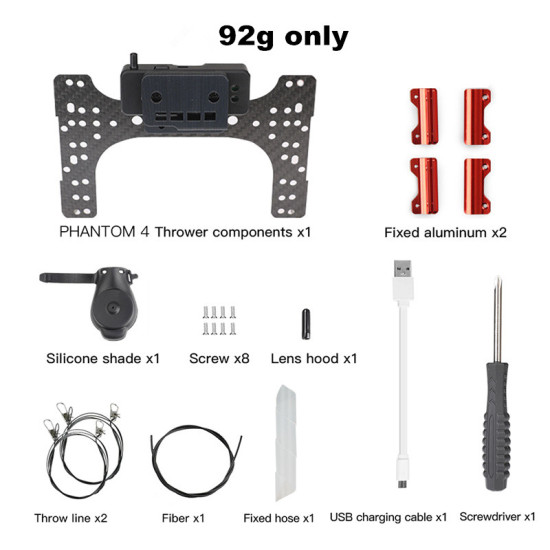

Net Weight: 92g
Gross Weight: 227.1g

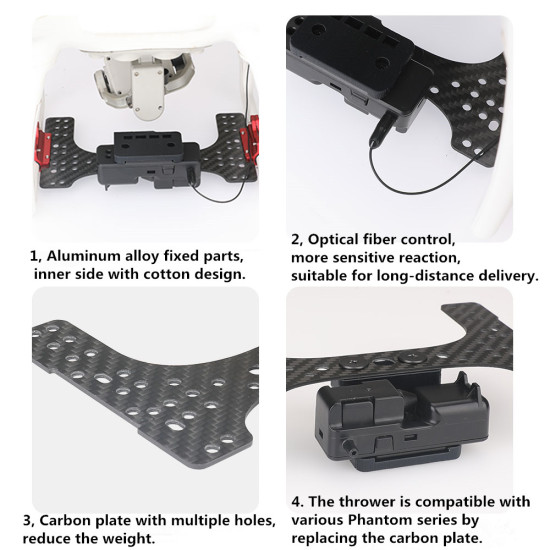

Phantom 4 Version Features:
1, Aluminum alloy fixed parts, inner side with cotton design.
2, Optical fiber control, more sensitive reaction, suitable for long-distance delivery.
3, Carbon plate with multiple holes, reduce the weight.
4. The thrower is compatible with various Phantom series by replacing the carbon plate.

Installation:

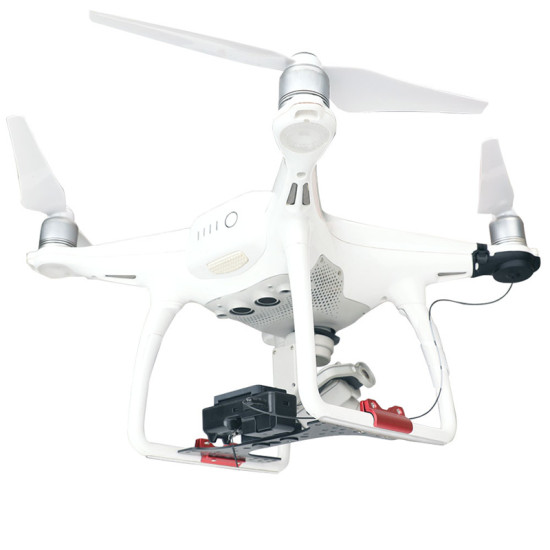

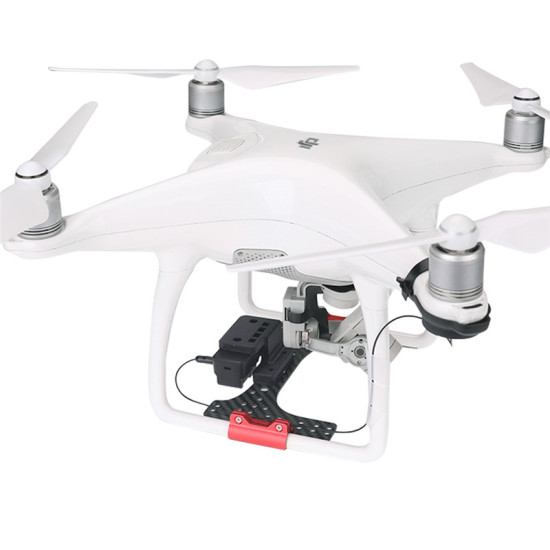

1. As shown in the figure, align the fixed aluminum piece with the carbon plate bayonet, tighten the screw, and fix it on the drone's tripod. The thrower should be located behind the pan/ tilt camera.
2. Insert the optical fiber cable into the photosensitive hole of the thrower, and cover the hood tightly.
3. The position below the motor of the UAV's left forearm or right forearm is aligned with the searchlight to install the silicone light shield.
4. Cut the other end of the optical fiber cable to an appropriate length, and insert it into the hole of the silicone light shield.
5.Fix the fer optic cable with a hose on the drone tripod.
6. Turn on the thrower switch, press the adjustment button, turn the hook to the proper position, and hang the  throwing line.
7. Turn the hook back to the vertical thrower position, and the installation is complete.

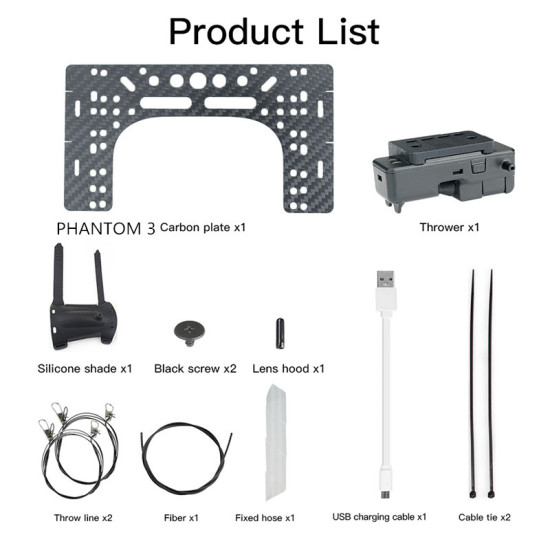

Phantom 3 Version
Specifications
Product name; New light thrower
Applicable models: PHANTOM 3A/PHANTOM 3P
Net Weight: 75g
Gross Weight: 190g

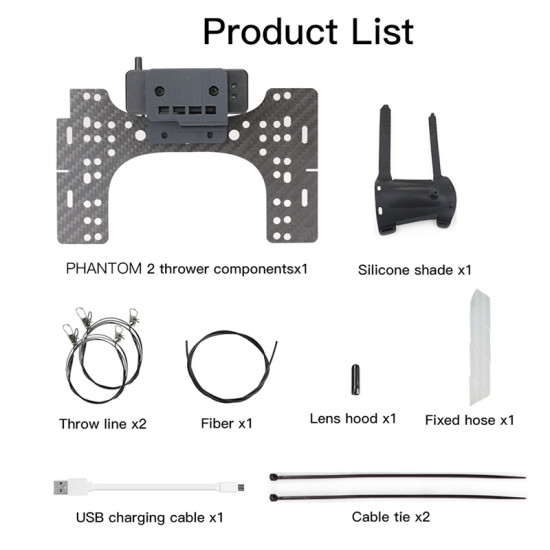

Phantom 2 Version
Specifications
Product name; New light thrower
Applicable models: PHANTOM 2
Net Weight: 73g
Gross Weight: 189g

Phantom 2/3 Version installation:
1.Connect the thrower and the carbon plate.
2.Install the carbon plate on the drone tripod, and the thrower should be located behind the gimbal camera.
3.Tighten both sides of the carbon plate and the tripod with a cable tie.
4. Insert the optical fber cable into the photosensitive hole of the thrower and cover the light shield.
5. At the position below the left forearm or right forearm of the drone, install the silicone light shielding parts against the searchlight.
6. Cut the optical fiber cable to an appropriate length and insert it into the hole of the silicone light shield.
7. Fix the fber optic cable with a hose on the tripod.
8. Turn on the thrower switch, press the adjustment button, turn the hook to the proper position, and hang the throwing line.
9. The hook is turned back to the vertical thrower position and the installation is complete.
